Product Details

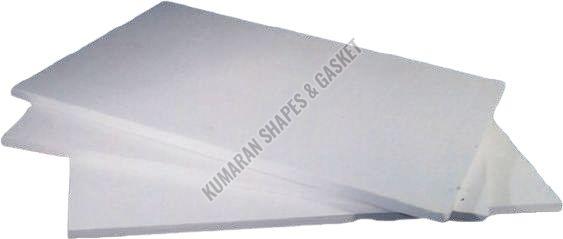

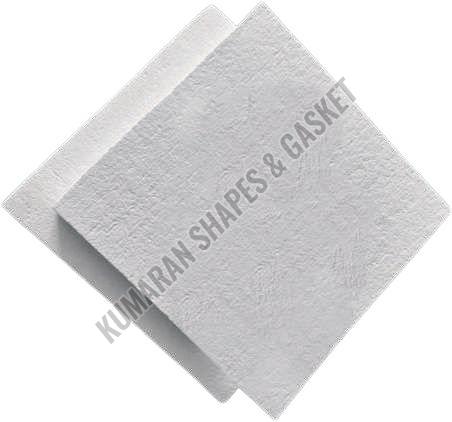

KSG Board products is a rigid ceramic fiber product made from Ceramic fiber by vacuum forming process .
The ceramic fibre board is made in sizes of width 500mm and length 1000mm can be used up to 1260 degree centigrade. The board has high insulating properties and good thermal shock resistant and can be cut to required sizes, Ceramic fibre board can reduce the energy cost and reduce the cycle time and improve the efficiency of the process.
KSG Boards once installed, they can help reduce energy costs and cycling times due to their high insulating capability, as well as serving to protect refractory surfaces from thermal shock. They are also well-suited for applications experiencing vibration, mechanical stress and strong erosive forces. The excellent rigidity and modulus of rupture possessed by these boards makes them strong and self-supporting.
Specifications
| Technical Properties | |||
| Physical Properties | NOR | HT | MS |
| Classification temperature ° C | 1260 | 1400 | 1260 |
| Chemical composition (%) (IS:12107 / XRF) | |||
| Al2O3 | >40 | >29 | >44 |
| SiO2 | <60 | <55 | <56 |
| ZrO2 | - | >16 | - |
| Loss on ignition % | <10 | <10 | <10 |
| 3 Density (Nominal) kg/m | 240 | 330 | 240 |
| up to 25 mm thick | 500 | 500 | 1000 |
| Modulus of Rupture (KPa) | |||
| Above 25 mm thick | 200 | 200 | 700 |
| Linear shrinkage % - 24 hrs | 4 | 4 | 3.5 |
| (Max) (ENV 1094-7) | (1200°C) | (1350°C) | (1200°C) |
| Color | Cream to Tan | White | Cream to Tan |
